Dolav Bin Tipper
Product # DSHOIST
Effortlessely Tip Dolav Bins - No Strain or Stress

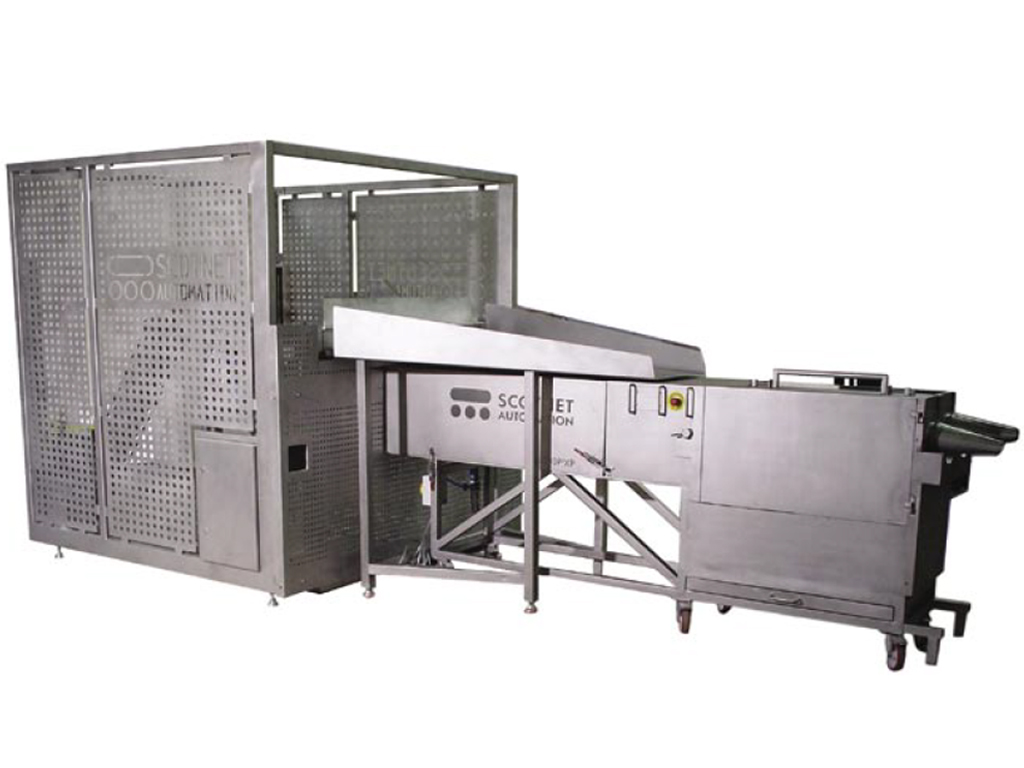

About the SCOTNET Dolav Bin Tipper
The Scotnet Dolav Bin Tipper has been specifically developed to tip the 1000mm x 1200mm Dolav style plastic bins from floor level onto one of our hoppers for feeding directly into our DS1200 Double Stuffers and DS1200PXP Double Presses.
Our tipper is fully guarded, enabling the stuffer operator to control the tip, without movin from his position.
- Pneumatic Tipping - eliminating any potential contamination from a cylinder leak.
- Reduce Fatigue - Eliminates bending and lifting, the product is effortlessely delivered exactly to the operator ready for loading into the chamber of the stuffer or press.
- Light Curtain Guarding -No gates or moving guards, simply load the bin into the machine, and the light curtain provides total security, enabling the tipping controls to be postioned at the stuffing operator.
- Electronic Controls - Simple to control, with Up/Down buttons, and hold at any point during the lift.
- Easy To Clean - Fully stainless steel design with quick-clean access built in, no tools or engineers required to prepare the machine for cleaning.
Key Benefits
- East to operate, load the bin, press reset, and that's it.
- Hoppers available in line or from the side.
- Tipps a full dolav with ease.
- Enhanced hygiene - Cleaning requires no tools or engineers.
- Reduced labour costs - the stuffer operator controls the tip.
- Eliminate the Strain - no bending or lifting.
Performance & Technical Specifications
- Output:Tip 15 - 30 Dolav Bins per hour.
- Pneumatics: 5.5-7 BAR / 80-102 PSI
- Air Volume:70 ft3 or 200 litres per minute
- Air Supply:10 mm ID Air Supply Line Minimum
- Electrical Supply:1ph (Single Phase) 240v supply, < 5 amps.
- Weight: Approx. 800kg
- Construction: Stainless steel
Click HERE to download the brochure for the Tipper.
Downloadable Media
| DS Tipper Brochure |  |
Video Media
Eliminate strain, the Dolav tipper with our double stuffer.
